Engineered NH3 System Integration
R.M. Technologies of America provides comprehensive anhydrous ammonia (NH₃) solutions, offering high-performance storage, handling, and delivery infrastructure. Engineered for maximum safety and operational reliability, our systems support a wide range of industries including power generation, chemical processing, water treatment, industrial refrigeration, and fertilizer production.
Understanding Anhydrous Ammonia (NH₃)
Anhydrous ammonia is a colorless compound formed by combining nitrogen and hydrogen. By weight, it consists of approximately 82% nitrogen and 18% hydrogen (a ratio of 14 parts nitrogen to 3 parts hydrogen).
State & Properties
- Ammonia Vapor: A naturally occurring byproduct of decomposition, ammonia exists as a colorless, pungent gas at atmospheric conditions. Being lighter than air, vapor releases tend to rise.
- Ammonia Liquid: Ammonia is stored and transported as a pressurized liquid. It features a high coefficient of expansion—one gallon weighs roughly 5 lbs, though density fluctuates with temperature. When released into the atmosphere, the liquid creates a distinctive white smoke by freezing atmospheric moisture.
Vital Physical Data
- Boiling Point: -28° F
- Freezing Point: -107.9° F (forms a white crystalline mass)
- Critical Temperature: 270.3° F (ammonia remains a vapor above this point regardless of pressure)
- Liquid Density: 42.57 lbs/ft³ @ -28° F (lighter than water)
- Vapor Density: 0.5970 lbs/ft³ (compared to air at 32° F/atmospheric pressure)
- Dissociation: Ammonia begins breaking down into its base elements (nitrogen and hydrogen) at approximately 850° F.

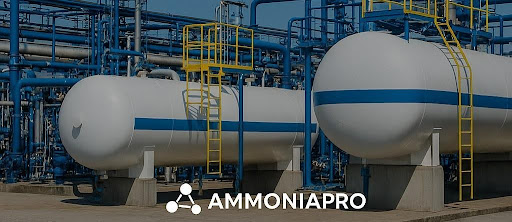

Industrial Storage & Safety
Anhydrous Ammonia System Solutions
Partner With the Ammonia Experts
From initial conceptual design to on-site installation and safety training, R.M. Technologies of America is your partner for every stage of NH₃ system integration.
